You Gotta Roll with It, JCB Launches New Big Roller

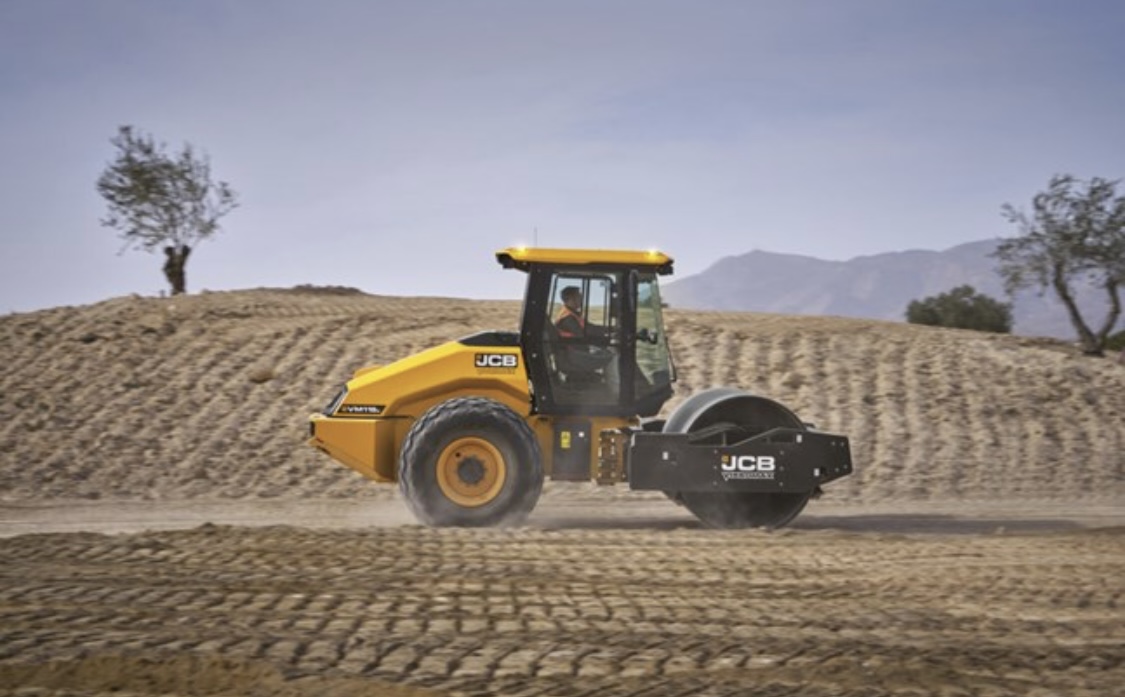

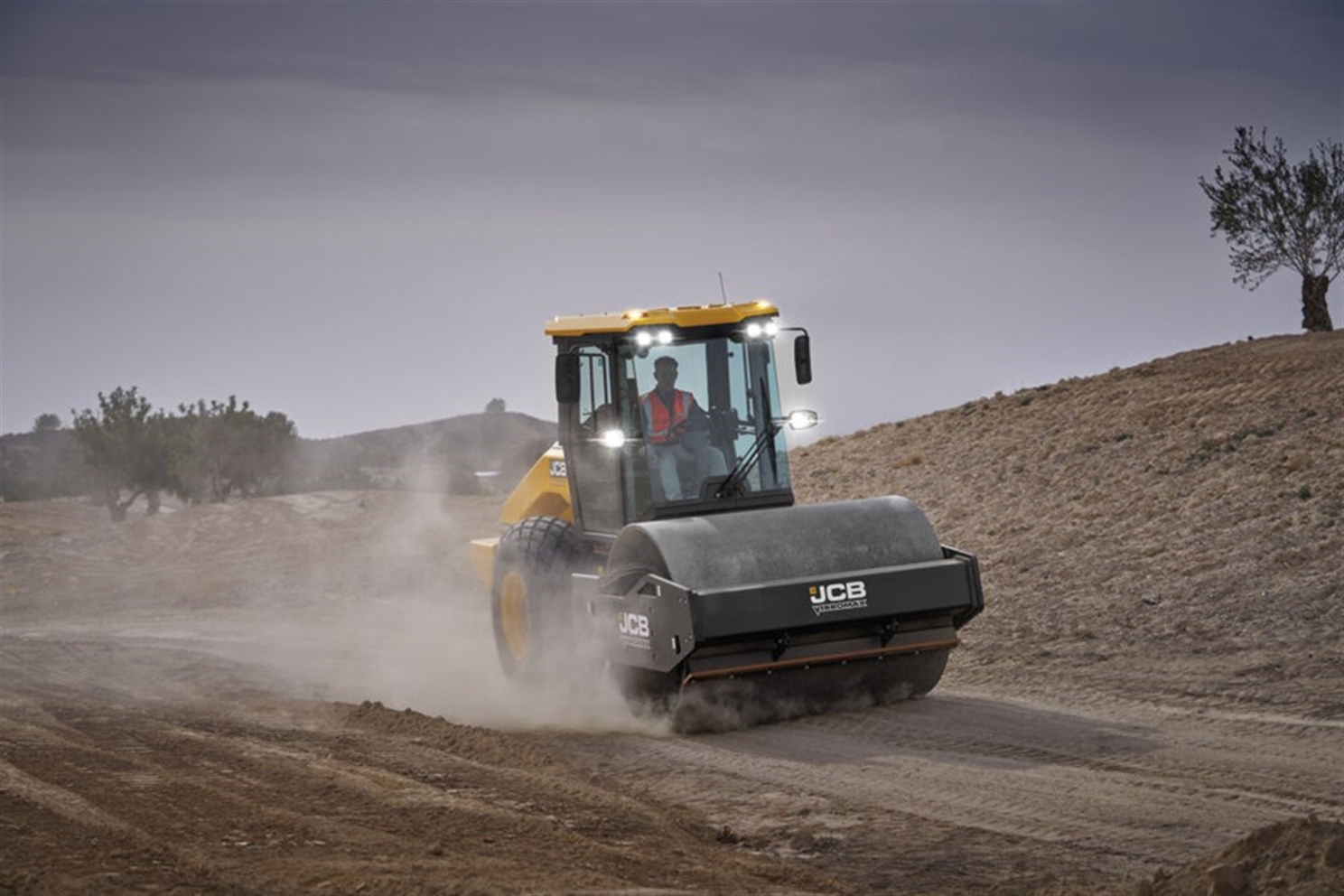

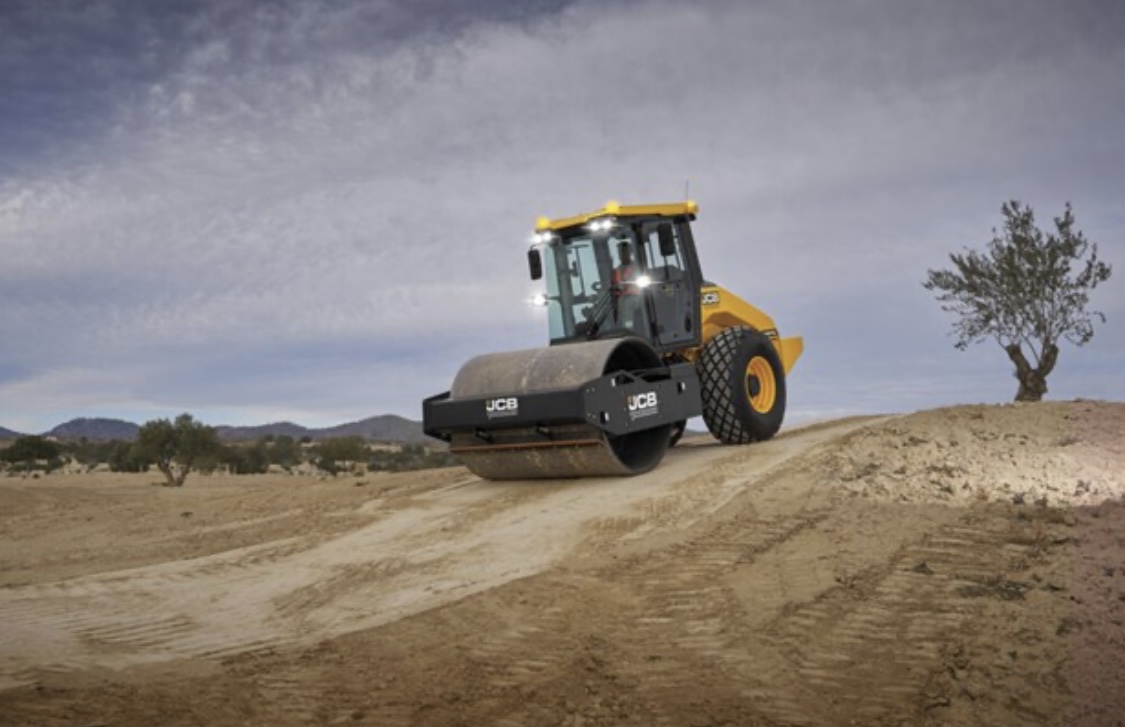

JCB has revealed the new 12-tonne class VM118D single drum soil compactor.

This latest addition to the range is powered by a Stage V, EU emissions compliant, 55kW JCB 430 diesel engine, which requires no Diesel Exhaust Fluid (DEF) to meet the emissions regulations.

JCB say that this is the world’s first and only Stage V or Tier 4 soil compactor over 10-tonnes that has no requirement for DEF, and that it reduces the cost and complexity of the machine overall, whilst saving its customers money overall.

Apparently, the front section of the machine, including the complete vibratory drum assembly is taken from the non-legislated market 116D model, while the rear section is based on the India Domestic VM117 Stage V compactor.

The high-torque engine drives through a 4-mode traction system, offering work, travel, gradient and PD shell settings. This delivers up to a 55% gradient climbing capability. The vibratory drum offers 32Hz and 36Hz frequencies and a choice of two amplitudes: 1.8mm and 0.8mm. There are also two centrifugal force settings on offer: 256kN and 147kN.

The soil compactor comes with the option of JCB’s INTELLICOMPACTION system and has Connected Compaction through the JCB LiveLink telematics system. A LiveLink subscription is included with the machine for the first five years of ownership.

The VM118D benefits from a new ROPS/FOPS cab and operator station, boasting all of JCB’s ergonomic design features. Flat glass all around reduces cost in the event of damage. A JCB UX 7” touchscreen used on the latest X-Series excavators displays all machine functions and in combination with a rotary control, provides easy access to all menus.

The cab package includes LED front and rear working lights, four amber beacons integrated into the roof, flat glazing for easy replacement and an air conditioning and heating unit integrated into the cab roof. An optional safety pack incorporates a road lighting kit, white noise reversing alarm and an immobiliser.

Checkout the great video produced by JCB wonderfully shot in some far away exotic location.
