New Caterpillar utility compactors

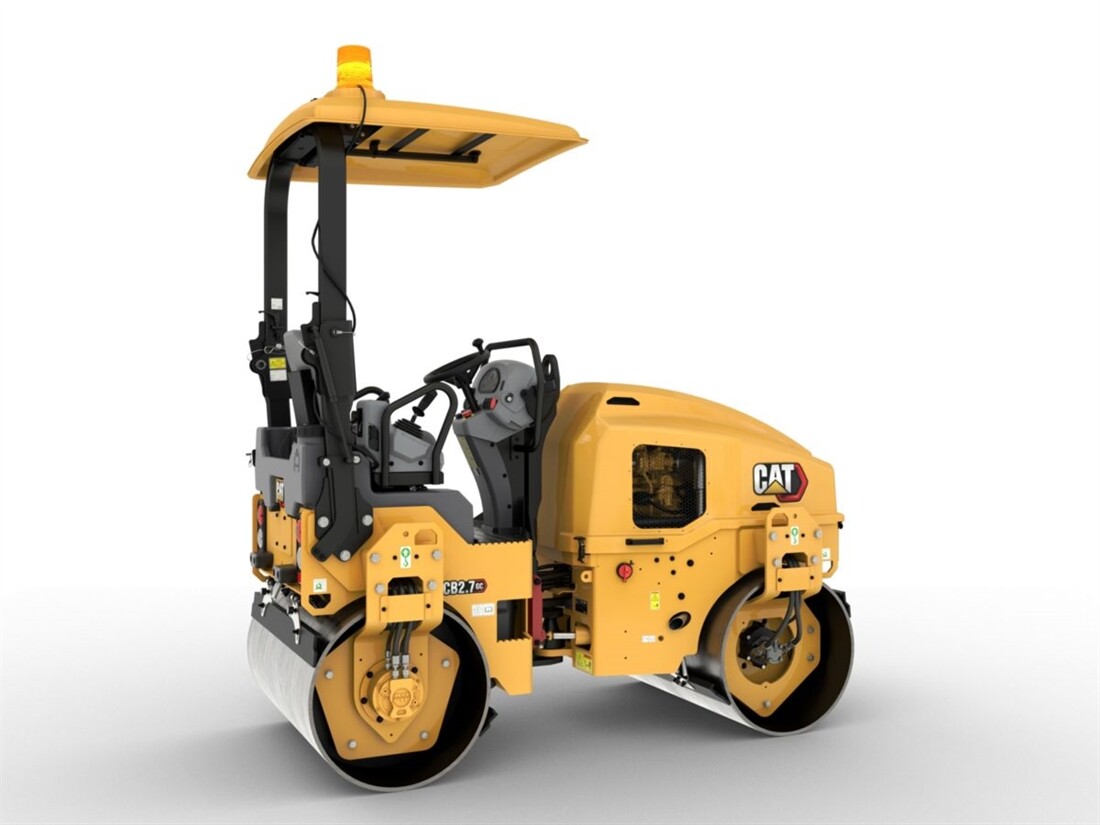

Caterpillar expands its 2- to 3-tonne product offering by introducing three new tandem and combination utility compactors that deliver increased productivity, high efficiency, simple operation and easy maintenance. The new line includes weight-based model nomenclature changes with the new Cat CB2.5 GC replacing the CB2.5, CB2.7 GC replacing the CB2.7, and new CC2.7 GC replacing the CC2.6. These versatile rollers take on a range of soil and asphalt applications, including car parks, driveways, urban streets, landscaping and small construction sites.

Powered by a turbocharged Cat C1.7T engine rated at 18.4-kW, the CB2.5 GC, CB2.7 GC and CC2.7 GC models meet EU Stage 5 emission standards without an aftertreatment system, simplifying maintenance and lowering service costs. Advanced hydraulics and exclusive power management software help deliver equivalent performance with the smaller engine. Their new auto idle shutdown feature helps to conserve fuel and machine hours.

The reengineered operator controls feature simple rocker switches and an easy-to-read Cat display for intuitive operation, so even inexperienced operators can quickly learn. A switch efficiently controls low/high vibration frequencies, while auto vibration control ceases vibration when the travel lever is in neutral to prevent marking of the asphalt mat. Available dual propel levers help to improve operator comfort.

Offering compaction widths from 1,000mm to 1,300mm, all new Cat utility compactors feature large 720mm drum diameters for a smooth mat finish. Thicker, 14mm drum shells deliver added durability and more compactive effort due to the increased weight. The rollers’ 50mm drum offset improves compaction efficiency when rolling next to curbs. A narrow frame design allows for improved visibility to the job surface and drum edge. Optional compaction measurement value (CMV) displays measured material stiffness to the operator, improving compaction performance, eliminating unnecessary passes and improving consistency.

The new GC series models incorporate a water tank gauge for continuous monitoring from the operator’s station, so the tank does not run dry. Better positioned nozzles on the spray bars improves water coverage on the drum to prevent material pick-up. The new spray test mode on the water system facilitates testing and adjusting nozzle angle to ensure proper drum coverage.

To help service technicians quickly diagnose existing and potential issues, the new utility compactor line now features standard Cat ET (electronic technician) diagnostic software. When connected to the Electronic Control Module (ECM), Cat ET accesses diagnostic information such as status parameters display, active diagnostic codes viewing, logged diagnostic codes view, and diagnostic tests and calibration to help identify machine issues.

Standard Product Link technology captures critical operating data, fault codes and machine location information to boost fleet management efficiency. Optional Remote Troubleshoot analyses real-time machine data for diagnostics of fault codes without impacting machine productivity and potentially saving a service trip to the jobsite. Allowing for machine software updates around the production schedule, optional Remote Flash ensures these utility compactors are operating with the most current version of software.

The new Cat compactors now come with standard a 76.2mm high-visibility orange seat belt to make jobsite safety visible. Slip resistance steps and platform help to improve operating safety. An operator presence sensor in the seat prevents unintended roller operation while not seated. Multiple optional LED lighting packages are available to help bring visibility on the jobsite and comply with roading regulations.
