New Develon DX10Z-7 mini-excavator

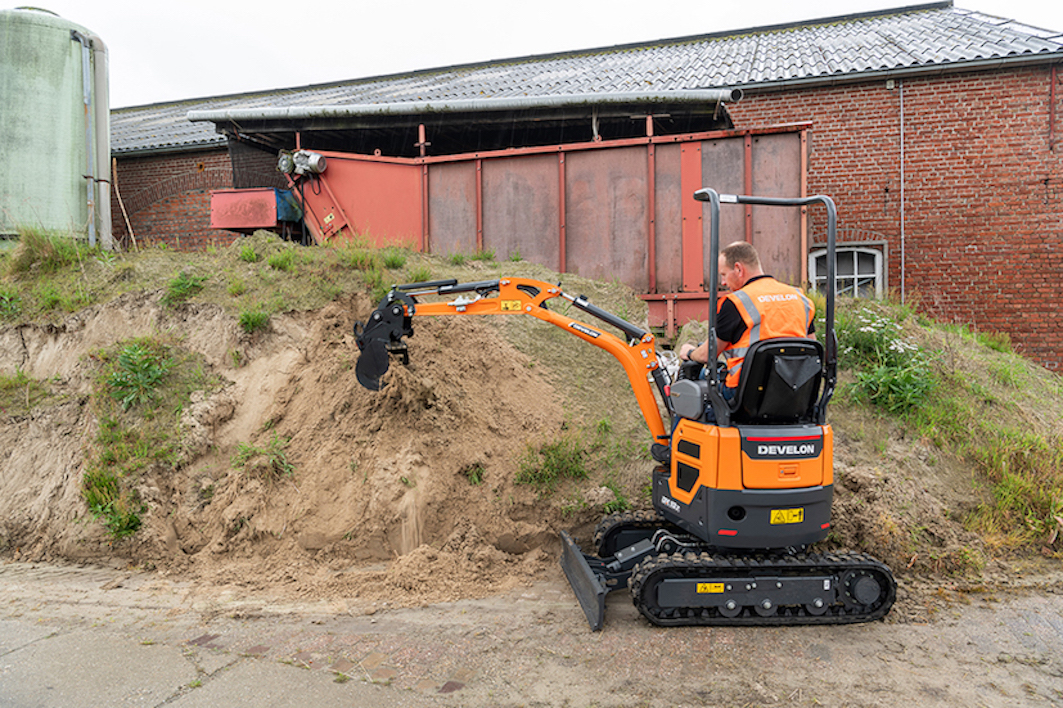

Develon, formerly Doosan Construction Equipment, has launched the new, 1-tonne DX10Z-7 zero-tailswing mini-excavator, providing a significantly improved performance compared to the previous DX10Z model it replaces.

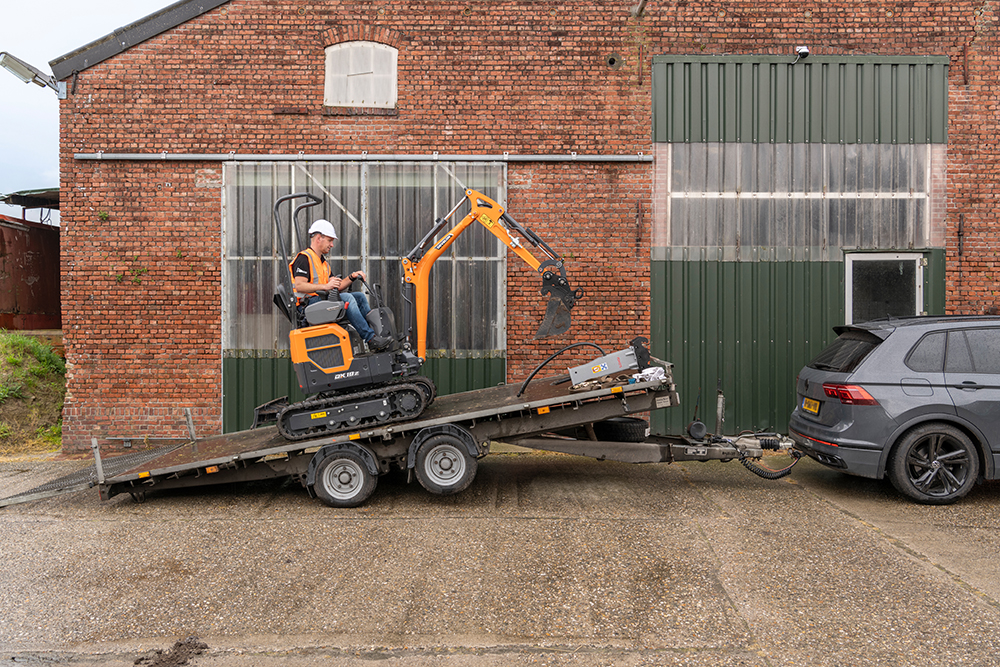

The DX10Z-7 is compact and easy to transport, offering a width of only 730mm when the tracks and the front blade are fully retracted, allowing the machine to pass through doors. The hydraulically expandable undercarriage provides the DX10Z-7 with one of the widest stances in the mini-excavator segment. When it is extended, the width of the square footprint becomes 1,100mm, providing unsurpassed stability. In addition, to make access to the job site even easier, a foldable TOPS (Tip Over Protective Structure) canopy meeting ISO 12117 requirements is standard on the model.
Supplying an output of 7.6kW (10.35hp), the well-proven Kubota D722 engine powers the DX10Z-7, providing dependable reliability, as well as low vibration and noise levels that are essential for working in confined areas in construction, rental, demolition, landscaping and many other applications.
Increased working range

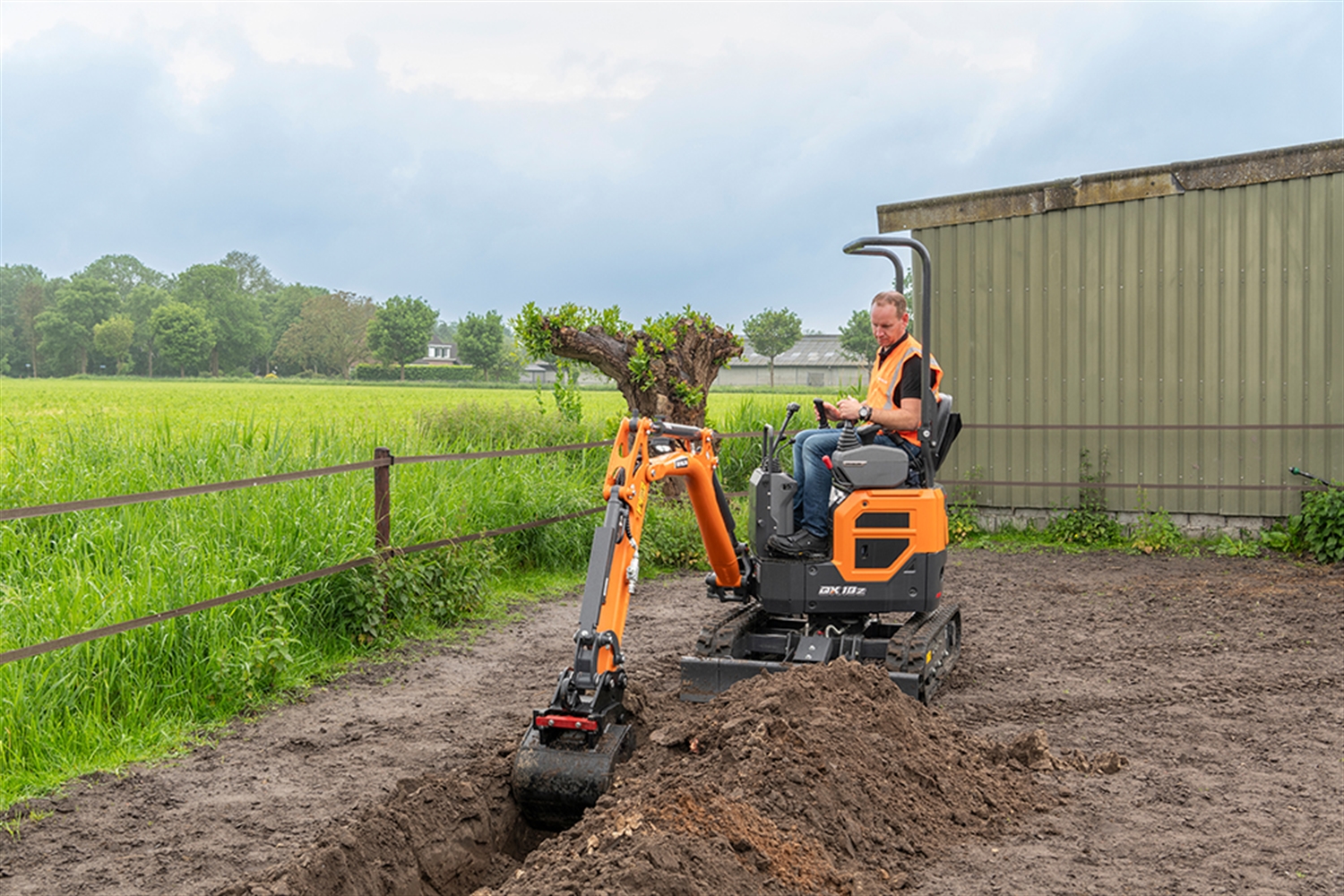

The increased performance of the DX10Z-7 is based around a new 1.45m boom design and increased arm length (from 810 to 890mm), resulting in a significantly enhanced working range compared to the DX10Z. This includes a 21.5% rise in dump height of 2,205mm and an 8.5% increase in digging reach at ground level of 3,355mm.
The DX10Z-7 also offers a 30% increase in bucket breakout force of 10.8kN and a 14% increase in arm breakout force to 6.3kN. This is combined with an increased on-ground track length of 1,025mm, providing enhanced stability and a 31% increase in traction force.
The workgroup of the DX10Z-7 mini-excavator features a cylinder-over-boom design, providing protection for the cylinder and an increase in lifting capacity. The front assembly on the DX10Z-7 is protected as standard by a bucket cylinder guard to protect against damage that may arise from accidental collisions on site. There is also an optimal hydraulic hose layout that protects the hoses by running them inside the boom structure, resulting in less risk of hose damage and failure and minimising downtime and the need for repairs. These features all enhance the durability of the DX10Z-7.
Operator comfort and safety
Despite its compact nature, the new DX10Z-7 does not compromise on operator comfort and is ergonomically designed with the operator in mind, featuring a swivel and tilting system for the consoles and a retractable seat belt as standard. The swivel and tilting system provides operators with greater ergonomic flexibility, allowing them to apply a 10-degree swivel and 35-degre tilting of both the right and left consoles. For increased safety, the DX10Z-7 also incorporates an LED boom lamp as standard.
Particular attention has been paid to ensure easy servicing of engine components on the DX10Z-7, via a maintenance cover under the operator's seat, that has an opening angle of 65 degrees to provide easy access for maintenance of the engine components.
The cooling system also delivers best-in-class performance − which is critical when working in spacially restricted areas where air flow may be minimal. A blower type airflow and a wavy fin core radiator are combined to ensure consistent and directed airflow across the radiator, enhancing cooling efficiency. The blower type fans create relatively low noise and vibration output and are easy to clean, says Develon.
