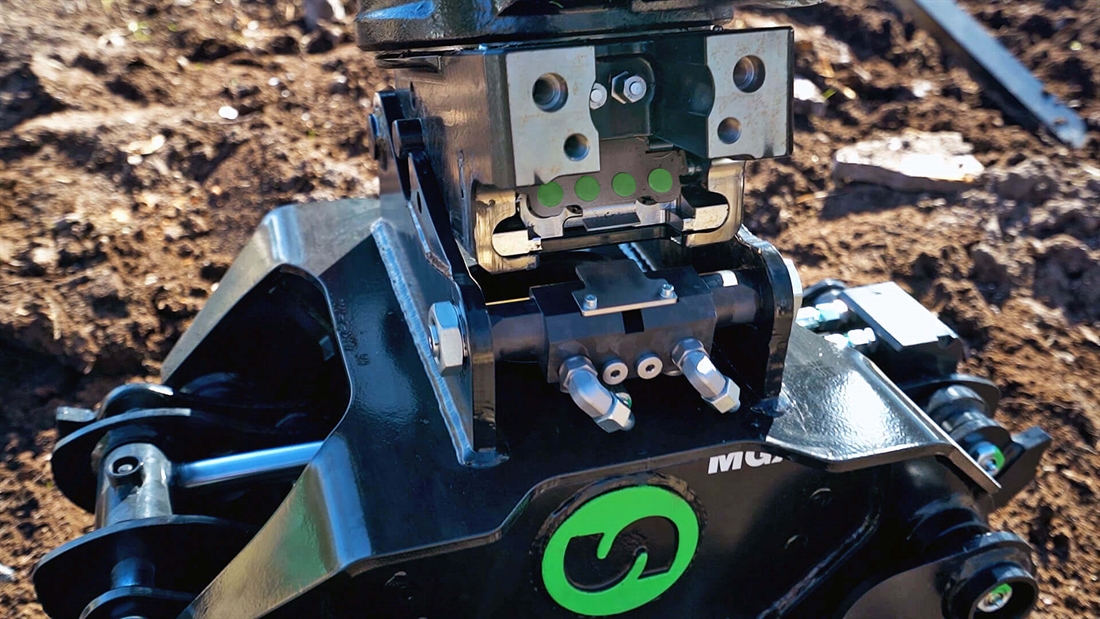

Steelwrist launches SQ40 quick coupler
Steelwrist extends its SQ technology to include the SQ40 automatic coupler for compact excavators. SQ40 allows for quick changes of high flow-powered work tools also on smaller excavators, providing the same efficiency as larger SQ couplers. This makes changing powered work tools easier and safer, as it can be done without leaving the cab.
The SQ40 size was first introduced during Bauma 2025, bringing the SQ auto connection technology to excavators between 2 and 7 tonnes. At Bauma SQ40 was first shown integrated in the quick coupler of the X07 tiltrotator and the XR7 rotor coupler, and now the SQ40 fully automatic machine coupler is launched.
In 2017 Steelwrist introduced the SQ auto connection system for quick couplers and tiltrotators. With the SQ technology it is possible to connect both hydraulics and electrical signals in one movement. With the introduction of the new SQ40 size Steelwrist’s product range includes eight different SQ quick coupler models (SQ40-SQ90), for excavators from 2 to 70 tonnes. SQ40 is specifically designed for the growing segment of compact excavators between 2 and 7 tonnes.
Significant development efforts have gone into the design of the new SQ40 automatic coupler and one very critical criteria was to ensure the flow required to power demanding hydraulic work tools. The SQ40 coupler is optimized to achieve a flow of 70 l/min thanks to a new and innovative coupling that provides 40 percent more flow area compared to a standard 3/8” coupling.
With the SQ40 automatic machine coupler Steelwrist also introduces the new H6 electrical connector that builds on the years of experience with the Open-S V14 electrical connector. The H6 is a 6-pin electrical connector which is fully integrated to the SQ40 locking wedge and has a molded design to ensure that it is environmentally sealed. Large contact surfaces and strong spring loaded pins ensure reliable electrical transmission and high current capabilities. The contacts core is hardened Phosphor Bronze, which results in effective corrosion-resistant properties when exposed to harsh conditions, as well as a hardness similar to steel to ensure a long service life.
The SQ40 follows the symmetrical S40 standard, meaning it is fully compatible with existing work tools without requiring costly modifications. Its modular construction enables fast upgrades from S to SQ, with simplified hose routing and easy installation of male couplings integrated into the rear tool shaft. This also means that hose routing is very flexible, and can be adapted to a wide range of hydraulic work tools.
“For the past two years I have been running the SQ40 size on my own excavator and once you get used to not having to leave the cab when changing hydraulic powered work tools you never want to go back. Since we introduced SQ40 at Bauma there has been a lot of interest for the product from many customers, and with the introduction of the SQ40 quick coupler we can also offer a sandwich tiltrotator installation. This is beneficial when you want to easily disconnect the tiltrotator to use for example a breaker”, says Stefan Stockhaus, Steelwrist CEO.
