Xwatch proportional EOHC

From the dusty cabins of traditional excavators, where operators juggled mechanical levers, to the contemporary cockpits equipped with cutting-edge technology, the world of hydraulic excavators has evolved substantially over the years. A significant leap in this evolution has been the introduction of the Xwatch proportional Electric Over Hydraulic Control (EOHC) by engineers at Xwatch Safety Solutions.

In the initial stages, control systems predominantly relied on mechanical levers directly interfacing with high-pressure valves. Following this period, low-pressure (pilot) hydraulic systems emerged, taking a prominent position and remaining widely in use today. Fast forward to the present, where technology and innovation intertwine to redefine operational efficiency, the Xwatch proportional EOHC emerges as a game-changer. This new system embraces the shift from pilot hydraulic systems to a more streamlined electric control of the high-pressure system, marking a significant cost and efficiency improvement for motion controls.

The introduction of the Xwatch proportional Electric Over Hydraulic Control (EOHC) marks a significant advancement that is slowly gaining traction. In the foreseeable future, EOHC is poised to become the dominant system, says Xwatch. It is, however, important to point out that when choosing an Xwatch system, not all customers have the option between the pilot hydraulic systems and the EOHC. The system is principally pre-determined by the machine’s hydraulic design, limiting the availability of options predominantly dictates the available choices. A range of models from Caterpillar, Volvo, Liugong and Takeuchi are among the brands that currently are compatible with the Xwatch proportional EOHC.

Proportional EOHC Edge
The Xwatch proportional EOHC’s core advantage lies in simplification, says its creator. It negates the need for an array of hydraulic valves, hoses, solenoid coils, and their cables, replacing them with compact EOHC units. The installation process of these units is easier, quicker, and cleaner, reflecting a blend of convenience and functionality. The recently revised EOHC box presents a remarkable enhancement, offering a single unit that can manage four motion controls. It simplifies the hydraulic excavator's operation by integrating multiple functions into a single box, ensuring that complexities are minimised, and performance is maximised.

A notable distinction lies in the Xwatch EOHC unit's capacity for proportional control of the electrical circuit. Unlike some competitors who offer a basic ON/OFF control in their EOHC systems, the Xwatch EOHC brings a subtle, proportionate control, aligning closely with the capabilities of the current pilot valves.

The transition process
Transitioning to the Xwatch proportional EOHC is a straightforward process. It involves unplugging the OEM wiring to the high-pressure valves and installing a ‘Y splitter’ cable, which directs the electrical circuit through the EOHC box. This setup allows for interruption of the circuit for motion control, and ensures the maintenance of circuit resistance, preventing the machine’s monitoring system from detecting any disruptions.

Fergus Fieldhouse, Xwatch product support engineer, commented on the innovation, saying, “The EOHC was born of necessity to supply sophisticated motion control, aligning with the advent of electric over hydraulic controls on some of the new generation excavators. It wasn’t about introducing a new innovation to the market as a selectable option. Instead, it was about fulfilling a critical operational need with enhanced precision and efficiency. The bonus part is that our system uniquely stands out by allowing proportional control, a feature that augments the user experience and operational finesse of the excavating machinery.”

The future is EOHC
EOHC is not merely a technological upgrade – it is a model shift, setting new benchmarks in the operational efficiency of hydraulic excavators, reckons Xwatch. Despite its current limited adoption, with only a handful of manufacturers utilising the electric system, EOHC’s undeniable benefits herald a future where it will undoubtedly, in the not-too-distant future, become an industry norm (subject to design).

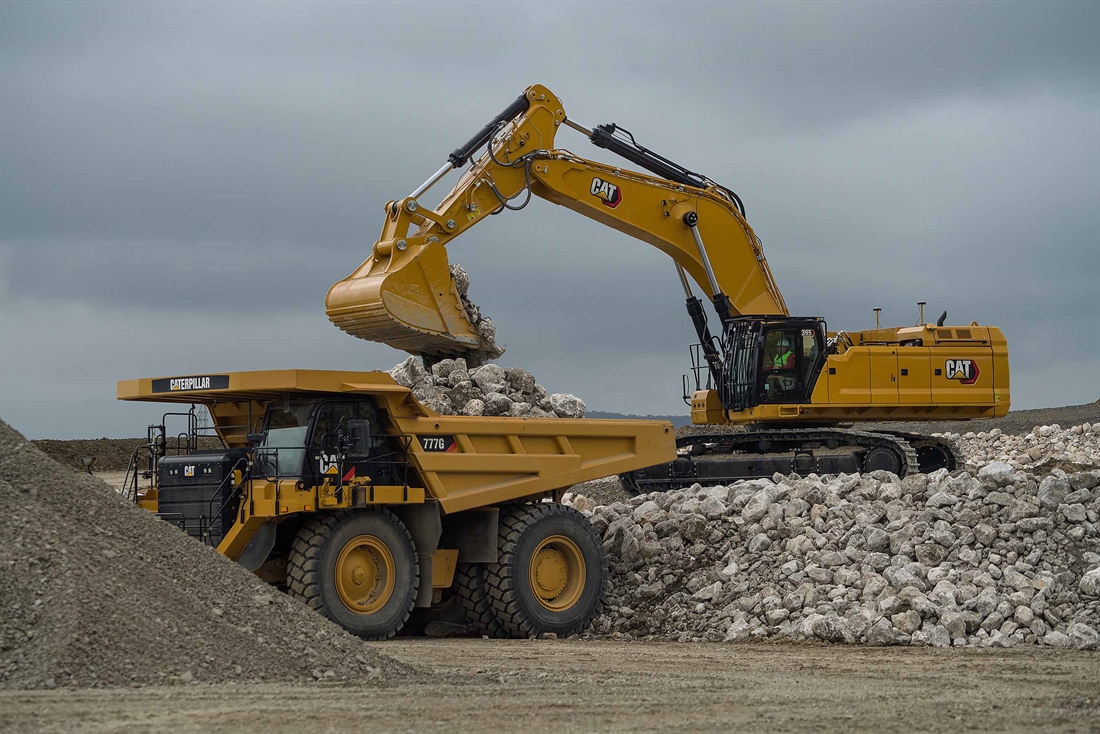

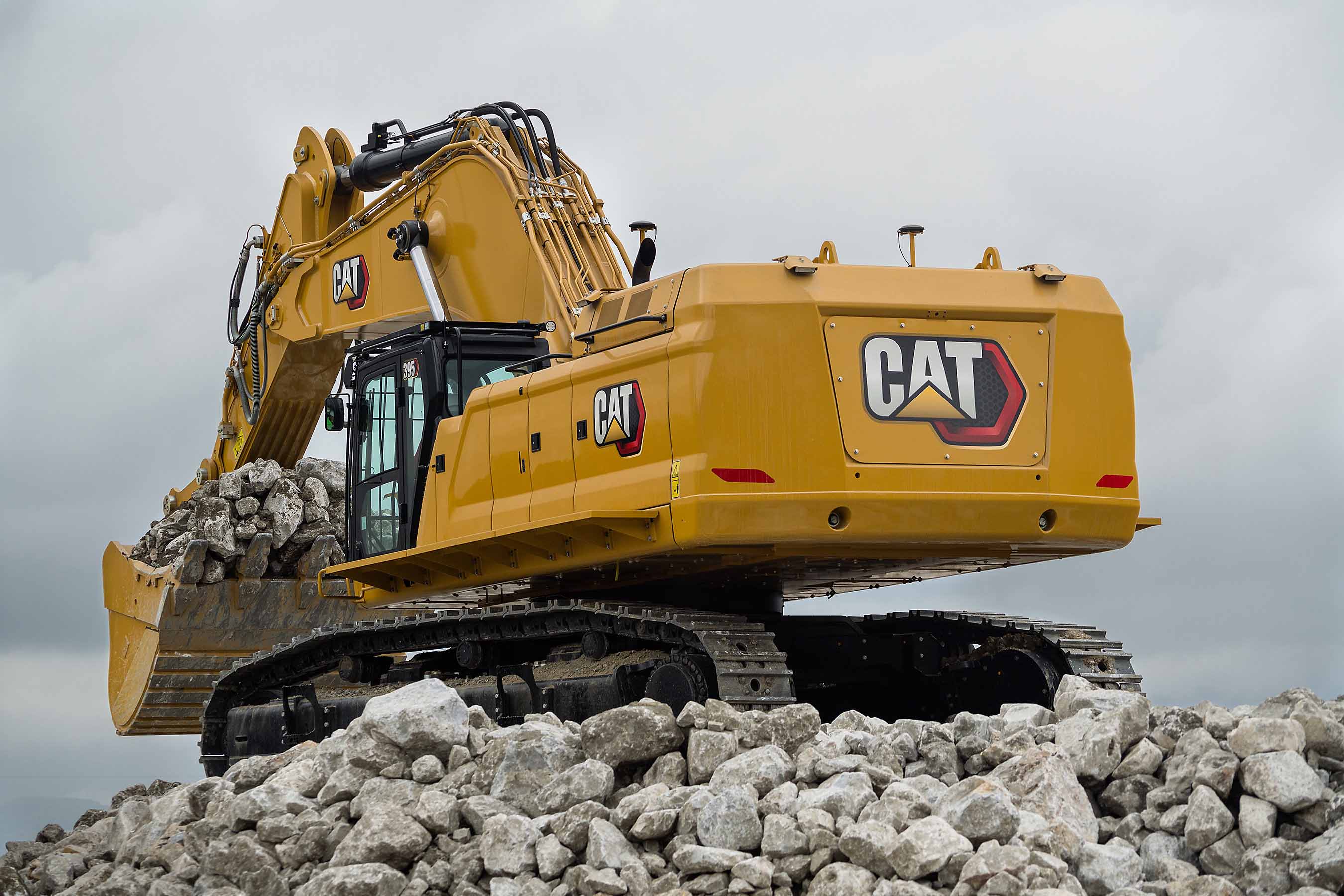

Pictured is an example of a recent install in Ireland. A Next Generation Cat 395 excavator has been upgraded by Justin Harrison, a Field Services Engineer at Allan J Hargreaves Plant Engineers Ltd. The excavator, boasting an operating weight of 94 tonnes, has been equipped with advanced features such as 12 Xwatch proportional EOHC (Electronic Over Hydraulic Control) and XW5 Total Protection. These enhancements include Height and Slew Limitation & RCI (Rated Capacity Indicator) and motion cut on overload, ensuring optimal performance and safety.
