Doosan’s new high reach excavator

by Kyle Molyneux  |  Tue 07 Apr 2020

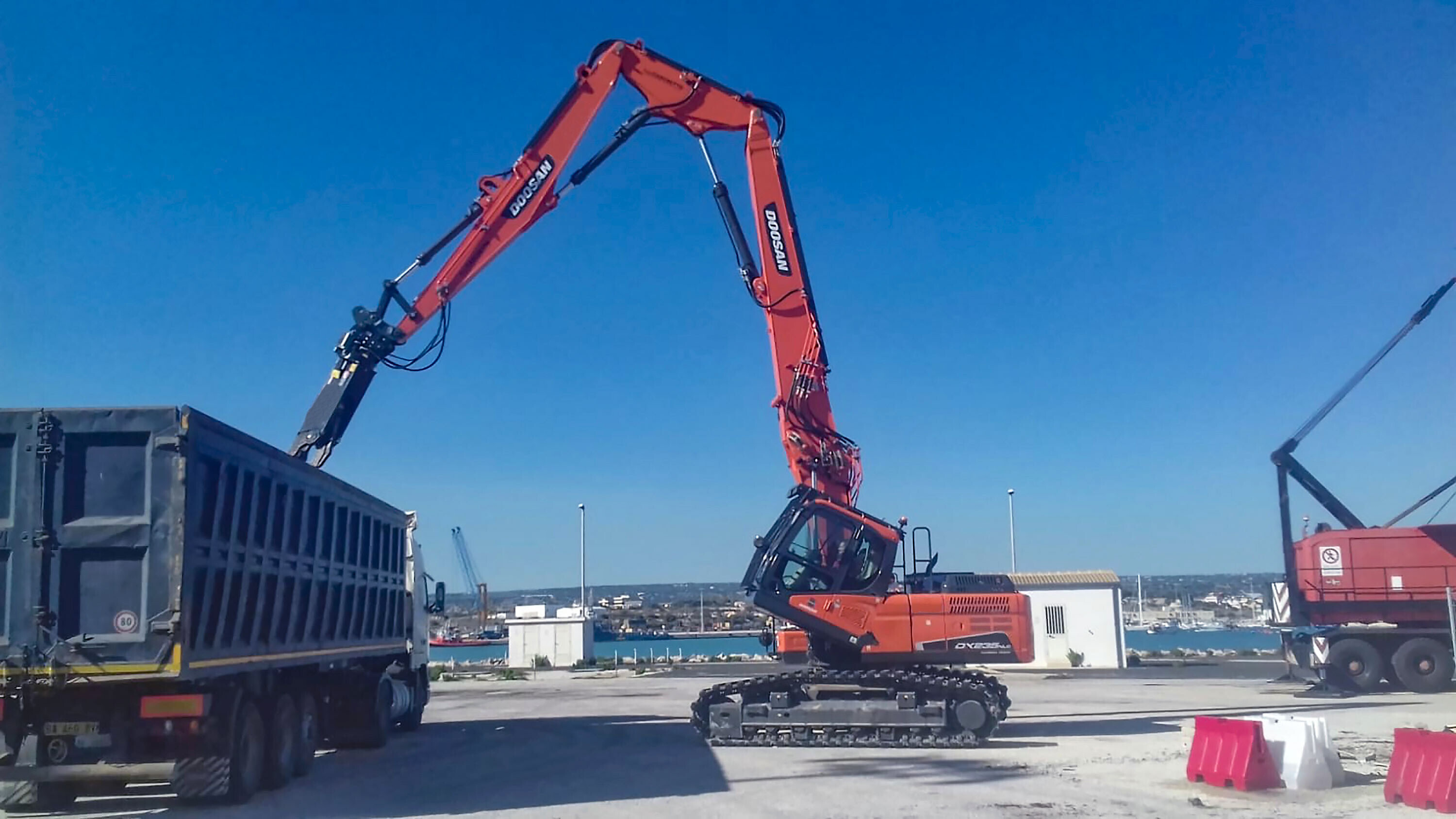

Doosan’s new high reach excavator

Doosan has launched the new DX235DM, the first of the company’s new range of High Reach Demolition Excavators (two further models in the range - the DX380DM and DX530DM will follow later this year). Typical of the design of the new demolition machines, the DX235DM has a high visibility, tiltable cab, particularly suited to high reach demolition applications and offering a 30-degree tilting angle.

A key feature of the 124kW DX235DM, which is shared with the other models in the new High Reach Demolition Excavator range from Doosan, is a modular boom design and hydraulic lock mechanism on the machine. This design ensures it is a simple process to change between a demolition boom and an earthmoving boom to accomplish different types of work on the same project. A special stand is provided to facilitate the boom changing operation, which is based on quick-change hydraulic and mechanical coupler connections. A cylinder-based system is used push the locking pins into place to help complete the procedure.

The multi-boom design also allows the earthmoving boom to be mounted in two different ways, which with the demolition boom, provides further flexibility with a total of three different configurations for the same base machine. For the DX235DM equipped with the 18m long demolition boom, the impressive working range allows the machine to work with a demolition attachment to a maximum height of 16m. The recommended maximum combined weight for the attachment and quick coupler in this mode is 2.1 tonnes.

When equipped with the digging boom in the straight configuration, the DX235DM can work to a maximum height of 9m. In this format, the recommended maximum weight for the attachment and quick coupler is 3.3 tonnes. Using the digging boom in the alternative bent configuration, the DX235DM can work with an attachment to a maximum height of 8m. In this mode, the recommended maximum weight for the attachment and quick coupler is again 3.3 tonnes. The DX235DM also has a hydraulically adjustable undercarriage, which extends to a maximum width of 3.74 m to provide optimum stability when working on demolition sites. The width of the undercarriage can be retracted hydraulically to 2.54 m in the narrow width position, which is ideal for transporting the machine.
